Tantalum Bars & Rods

Tantanlum tubes

Grade：Ta2.5w, Ta5w,Ta7.5w, Ta10w

Standard：GB/T8182-2008/ASTM B521-98

Parameter:



Name	Grade	Specification
		Outer diameter	Thickness	Length
Tantanlum seamless tube	Ta2.5w, Ta5w,Ta7.5w, Ta10w	1mm-160mm	0.15-16mm	Max: 6000mm













We offer other size as your enquiry or drawing

Applicaiton:Corrosion resistant and superconducting industries, it can be used as corrosion resistant draft tube, electrode tube,etc.







Tantanlum  alloy sheet/plate/foil/strip

Grade：Ta1，Ta2，R05200，R05400，R05255，R05252，Ta7.5W

Standard：ASTM B708-92

Application: used for making heating parts, heat insulation parts and loading containers for vacuum blast furnaces. Used in chemical industry to make  heaters, chillers, all kinds of containers, etc., and widely used in aviation, aerospace industry, medical equipment and other fields.

Parameter



Grade	Condition	Specification(mm)			Shape
		Thickness	Width	Length
Ta1 Ta2 R05200 R05400 R05255(Ta10W) R05252(Ta2.5W) Ta7.5W	Hard (Y)	0.05～0.09	<150	>200	Foil
	Hard (Y) Soft (M)	0.1～0.5	50～300	100～2000	Plate
		>0.5～2.0	50～500	50～1200	Sheet
		>2.0～6.0	50～500	50～1200



Tantanlum wires/coils

Size :Dia 0.2-3.5mm*Length

Grade：Ta1，Ta2，Ta10W，Ta2.5W，Ta7.5W

Standard：GB/T26012-2010/ASTM B392-2003

Application: electrolytic capacitor anode lead, etc.

We offer other size as your enquiry or drawing.

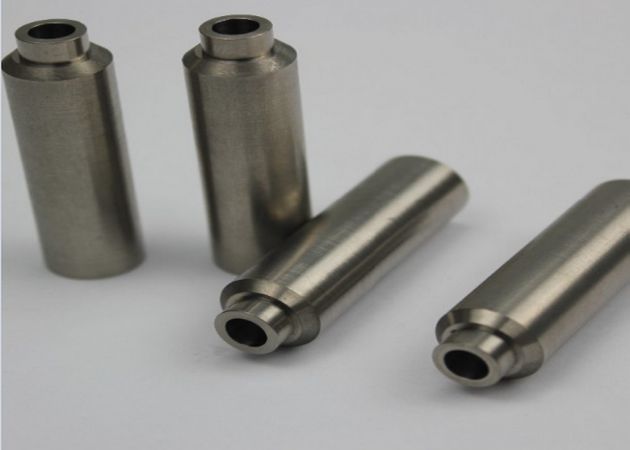

Tantalum CNC Machined Part :

Material:  Tantalum and Tantalum Alloys
Material characteristics: High corrosion resistance, small expansion coefficient, strong toughness

Melting point:  2996°C

Density : 16.654 g/cm3

Surface: Polished

Drawing: 3D/ CAD

Size & Shape: Custom made

Raw material: Top quality  Tantalum rods, Sheets and Tubes

MOQ: 5 pcs

Surface: Polished surface

Roughness: Max 1.6um

Application

Assembly of high temperature equipment

Other equipment and industries that require super corrosion resistance



Tantalum  Bolts & Screws

Metric   Tantalum Bolts  Standard:  DIN, JIS, ISO, BS

Inch    Tantalum  Bolts   Standard: ANSI/ASME B18.2.1

Material:  Tantalum and Tantalum Alloys

Material characteristics: High corrosion resistance, small expansion coefficient, strong toughness

Melting point:  2996°C

Density : 16.654 g/cm3

Surface : Polished



The Most commonly Specification and size used



Standard Item	Size in Bulk Stock
DIN 933	M3;  M4;  M5; M6;  M8;  M10;  M12;  M16
DIN 931	M3;  M4;  M5; M6;  M8;  M10;  M12;  M16
ANSI/ASME B18.2.1	1/4”  ,3/8”,  7/6” 3/4”  7/8”  5/8”
DIN 912	M3;  M4;  M5; M6;  M8;  M10;  M12;  M16



Application

Assembly of high temperature equipment

Internal fastening for sulphuric acid equipment

Other equipment and industries that require super corrosion resistance



Tantalum Crucible

Material:  Tantalum and Tantalum Alloys

Material characteristics: High corrosion resistance, small expansion coefficient, strong toughness

Melting point:  2996°C

Density : 16.654 g/cm3

Surface : Polished

Size & Shape: Custom made

MOQ: 5 pcs

Drawing : OEM/ CAD

Roughness : Max 3.2um



Application

Assembly of high temperature equipment

Assembly and synthesis of semi conductive materials

High temperature and normal pressure chemical reaction generator for precious metals
