Titanium Nuts

Metric Titanium Nuts Standard:  DIN, JIS, ISO, BS
Inch  Titanium Nuts Standard:ANSI/ASME B18.2.2
The Popular Inch nuts  size : 1/4”  ,3/8”, 7/6”  ,3/4”  7/8”  5/8


Material: Grade 1Grade2, Grade5,  Grade 7 ,Grade 9, Grade 12   M3, M4, M5, M6, M8, M10, M12, M16
Material Standard: AMS, ASTM 348 ,Special demand(Tensile stregnth more than1100Mpa)



Non-standard and special size is available according to your drawing or requirement

Big Inventory of  Titanium  Nuts  in Gr2  Gr5  DIN934 DIN985 DIN6926 DIN6923



Our advantage

1)Aerospace Grade Titanium Roun Bar as Raw Material

2) Fast shipment : Within 7 days shipment

3) 100% Quality control throughout traceability

4) 15 years Experience in manufacturing Titanium fasteners

5) Technical  Consulting Service : Your Titanium Expert with One Stop Fastener Solution

Product Details

1. The Applications of Titanium Nuts.



                                        Offshore Oil Pipeline

Chemical Industry



Titanium Spherical Nuts & Locking Nuts in Submarine  Engineering

The proportion of titanium lightness, nonmagnetic,

low-temperature performance and its excellent

corrosion resistance in seawater, is the first choice

in deep sea oil drilling,underwater mainpulator,Dechlorinator

and Bathyscaphe application. Titanium boltshave longer

service lifespan than other metal bolts in complexd eepwater

environments.

Titanium Hex Nuts in Chemical Industry

 Due to the excellent corrosion resistance of titanium

 bolts, it is widely used in electroplating equipment, distillers,

 heat exchangers, condensing towersand Reaction valvetowers

  and numerous chemical equipments.




Parameters

2. The Specifications of Titanium Nuts



A. Brief Viewing Featured Titanium Nuts.





Xi'an Ocean Trading Co., Ltd.

 Hexagon Nut

Material: Titanium Gr2

Specification: DIN934

  Size: M3 M4 M6 M8 M10 M12




Xi'an Ocean Trading Co., Ltd.

Hex Nut and Hex Jam Nut

Material: Titanium Gr4

Specification: ANSI/ASME B18.2.2

Size: 1/4”

Xi'an Ocean Trading Co., Ltd.

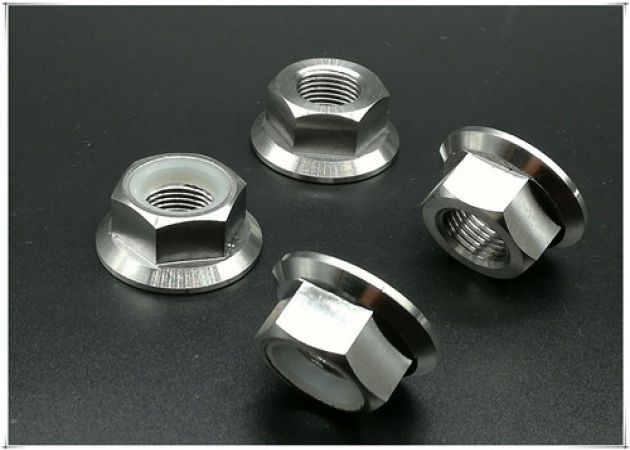

Hexagon Nut with Flange

Material: Titanium Gr9

Specification: DIN6926

Size: M8



Xi'an Ocean Trading Co., Ltd.

Self-Locking Hex Nut with Nylon Insert

Material: Titanium Gr3

Specification: DIN982

Size: M4

Xi'an Ocean Trading Co., Ltd.

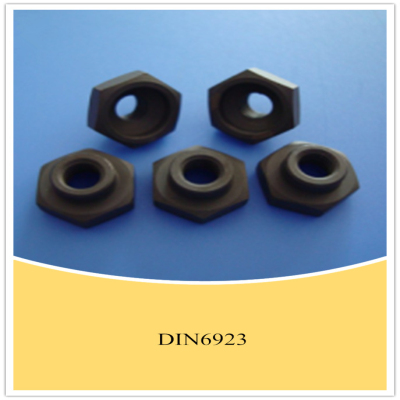

Prevailing Torque Type Hexagon Nut

Material: Titanium Gr12

Specification: DIN6923

Size: M6

Xi'an Ocean Trading Co., Ltd.

Special  Nut

Material: Titanium Gr4

Specification: Order demand

Size: M10



B. The Physical Properties of Titanium  Grades as  ASTMB348



Grade

Condition

Tensile strength (Mpa)min

Yield strength ( 0.2% offset) (Mpa)min

Elongation ( 4D) (%)min

Reduction of Area (%)min

Gr1

Annealing

241

172

24

30

Gr2

Annealing

345

276

20

30

Gr3

Annealing

448

379

18

30

Gr4

Annealing

552

483

15

25

Gr5

Annealing

896

827

10

25

Gr7

Annealing

345

276

20

30

Gr9

Annealing

621

483

15

25

Gr12

Annealing

483

345

18

25

Notice: Mechanical properties at room temperature




C. The Detailed Specifications of Titanium Nuts.



Item: Titanium Nuts
Raw Material: Pure Titanium or Titanium Alloys.
Standard: DIN, JIS, ISO. ANSI.ASME B.
Grade: Gr.1, Gr.2, Gr3 Gr4, Gr.5, Gr.7, Gr.9, Gr.12, Gr.23
Size: M1.6mm-64mm/Customised size
Surface: Polishing
Performance: Super-hard, ultra-light, wear-resistant, corrosion-resistant and anti-loose with excellent performance
Packing: a.bulk+carton+pallet; b.small+carton+pallet; c.color box+carton+pallet
Payment terms: L/C,T/T,Paypal
Delivery time:  1 day after prepaid for stocked items; 2-3 weeks after prepaid if processing needed.



D. The Inventory List of Featured Titanium Nuts.



a.Big  Inventory of  Titanium Gr.2  Nuts



Standard Item

Size in Bulk Stock

DIN 934

M3;  M4;  M5;  M6;  M8;  M10;  M12;  M16

DIN 439

M5

ANSI/ASME B18.2.2

1/4-20”

DIN 985

M5;  M10



b. Big Inventory of Titanium Gr.5 Nuts



Standard Item

Size in Bulk Stock

DIN 934

M3;  M4;  M5;  M6;  M8;  M10;  M14

DIN 6926

M5;  M6;  M10;  M12

Remark: The Inventories above are featured products in large stock only, and for customized requirements & more info., you are welcomed to contact us online or via email.
